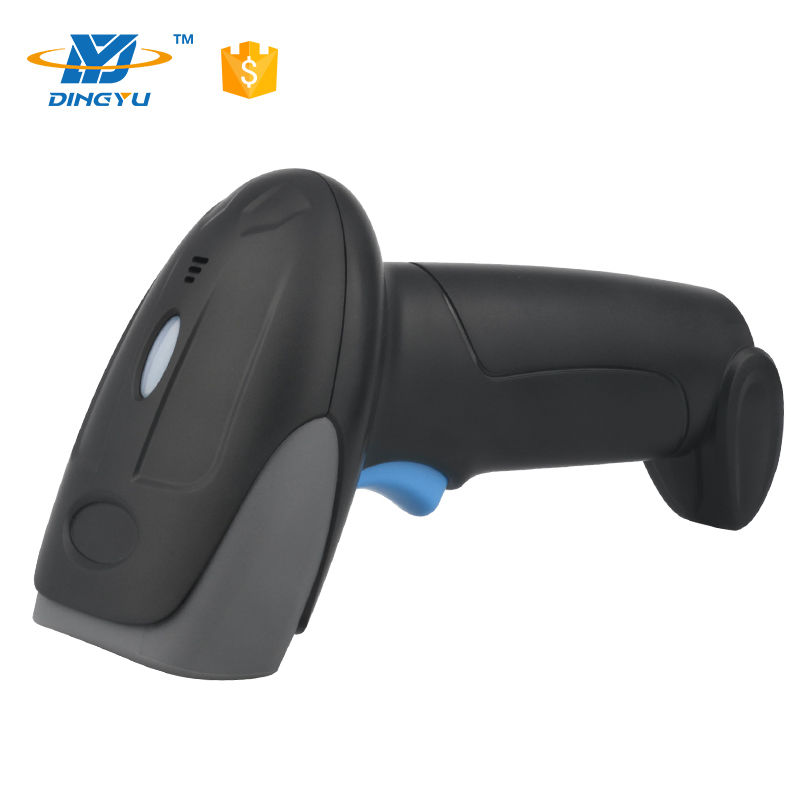

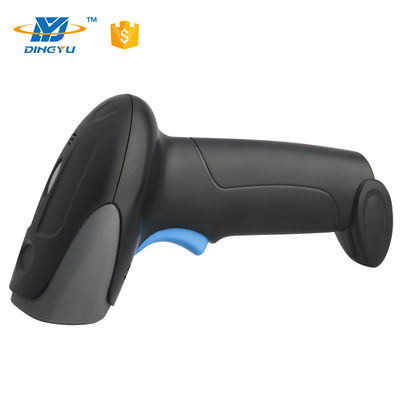

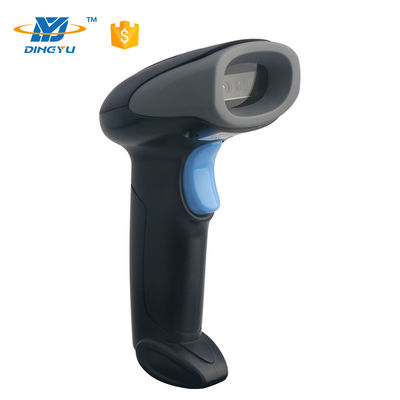

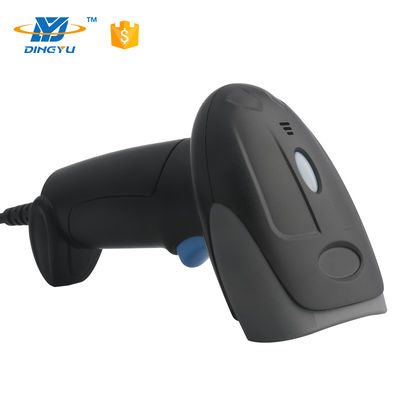

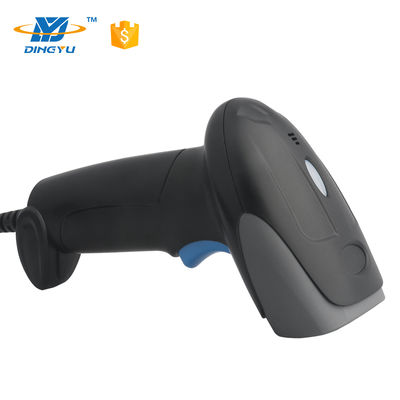

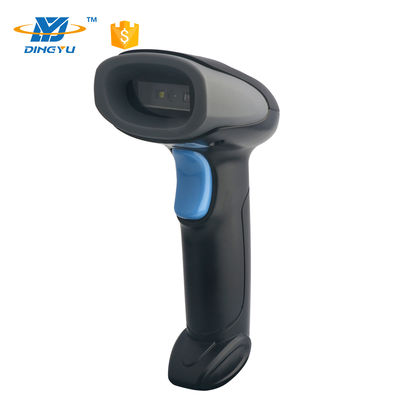

Name: DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

منزل المنتجات 1D ماسح الباركود

DYscan DS2806-1D 1D Barcode Scanner USB 300 Scans/sec

تفاصيل المنتج:

شروط الدفع والشحن:

الحد الأدنى لكمية:	1

اتصل

مفصلة وصف المنتج

نموذج لا.:	DS2806-1D	نوع الواجهة:	USB ، RS232
سرعة المسح:	300 عملية مسح / ثانية	عنصر المسح:	CCD الخطي
مصدر الضوء:	الضوء الأحمر المرئي ، 625 ± 10nm	وحدة المعالجة المركزية:	32 بت
دقة:	1500	دقة القراءة:	≥4مل/0.1مم
عمق المجال:	40 مم -500 مم	وضع المسح:	دليل ، مستمر
وزن:	≈170 جرام	البعد:	الطول 163.5 ملم * العرض 65.0 ملم * الارتفاع 89.5 ملم
مزود الطاقة:	DC 5V@80MA (عمل)	درجة حرارة التشغيل:	-20 درجة مئوية إلى 50 درجة مئوية
رطوبة:	5 ٪ إلى 95 ٪ (غير تكثيف)
إبراز:	1D barcode scanner USB,DYscan DS2806-1D scanner,barcode scanner 300 scans/sec , DYscan DS2806-1D scanner , barcode scanner 300 scans/sec

Handheld 1D Wired Barcode Scanner PC EAN13 Code Scan Gun

Product Overview

The DS2806-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for professional use, it efficiently reads barcodes from various surfaces including paper, goods, and digital screens.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with exceptional accuracy
High-performance 32-bit processor for fast decoding (4mil precision)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	1500
Reading Precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	40mm-500mm
Scan Mode	Manual, Continuous
Scan Angle	Pitch: ±50° Roll: ±30° Skew: ±50°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	≈170g
Dimensions	163.5mm × 65.0mm × 89.5mm
Communication Mode	USB, RS232
Interface Type	USB, DB9
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable

Product Images

Application Scenarios

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control through comprehensive testing including engine age tests, wire bend tests (1 million cycles), switch life tests, and shock resistance tests. All products are CE, FCC, and ROHS certified.

Q2: What is your warranty policy?

We offer a 12-month warranty on all barcode scanners.

Q3: Do I need to install drivers?

No, our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring additional drivers.

Q4: Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM services including custom branding, packaging, and documentation. Our technical team also supports ODM development projects.
