Name: Industrial Rugged Handheld 2D Barcode Scanner with 300 Scans/Sec Speed 640*480 Resolution and 3mil Reading Ability
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

منزل المنتجات 2D الباركود ماسحة

Industrial Rugged Handheld 2D Barcode Scanner with 300 Scans/Sec Speed 640*480 Resolution and 3mil Reading Ability

تفاصيل المنتج:

شروط الدفع والشحن:

الحد الأدنى لكمية:	1

اتصل

مفصلة وصف المنتج

نموذج لا.:	DS5220-2D	نوع الواجهة:	USB
سرعة المسح:	300 عملية مسح / ثانية	عنصر المسح:	CMOS
دقة:	640*480	القدرة على القراءة:	3mil
سرعة فك التشفير:	65 سم / ثانية	عمق المجال:	20 مم ~ 530 مم
وضع المسح:	يدوي، استشعار تلقائي، مستمر	طريقة سريعة:	مؤشر LED ، الجرس
طباعة التباين:	20 ٪	وزن:	≈159.6 جرام (بدون كابل)
أبعاد:	الطول 68.4 ملم * العرض 170.6 ملم * الارتفاع 87.6 ملم	مزود الطاقة:	مدخل DC5V، تيار الاستعداد: 50 مللي أمبير، تيار فك التشفير: 180 مللي أمبير
درجة حرارة التشغيل:	-20 درجة مئوية إلى 55 درجة مئوية
إبراز:	300 Scans/Sec 2D Barcode Scanner,640480 Resolution Handheld Barcode Scanner,3mil Reading Ability QR Code Scanner , 640480 Resolution Handheld Barcode Scanner , 3mil Reading Ability QR Code Scanner

Industrial Long Range Rugged Handheld Scanner

Portable QR & Bar Code Reader - 1D/2D Wired/Wireless Barcode Scanner

The DS5220-2D is a wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, express delivery, inventory management, food traceability, and asset tracking.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D & 2D barcodes with ease
High-performance processor for fast decoding (3mil resolution)
Supports multiple languages and operating systems
Interfaces: USB, RS232
Wide application in supermarkets, warehouses, mobile payments, and chain stores

Performance Specifications

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480 (global exposure)
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	20mm~530mm
Scan Modes	Manual, Auto Sense, Continuous
Prompt Method	LED indicator, buzzer
Field of View	Horizontal 40° × Vertical 30°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Print Contrast Signal	≥20%
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈159.6g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB
Interface Type	USB
Power Supply	DC5V input, Standby current:50mA, Decoding current:180mA

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes for high temp. (60ºC), 30 minutes for low temp. (-20ºC)
Transport Vibration Test	10H@125RPM

Accessories

Cable	USB, connects the scanner to a host device and charging
Receiver	Used to receive and transmit scanner data

Depth of Field Specifications

Barcode Type	Barcode Density	Nearest	Furthest
Code 39	0.1mm (4mil)	50mm	75mm
Code 39	0.25mm (10mil)	30mm	200mm
Code 39	1mm (40mil)	115mm	530mm
UPC/EAN	0.33mm (13mil)	40mm	260mm
QR Code	20.0mil	20mm	165mm
Data Matrix	10mil	40mm	100mm
PDF 417	6.8mil	30mm	140mm

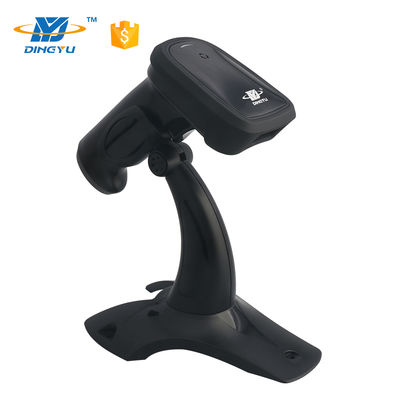

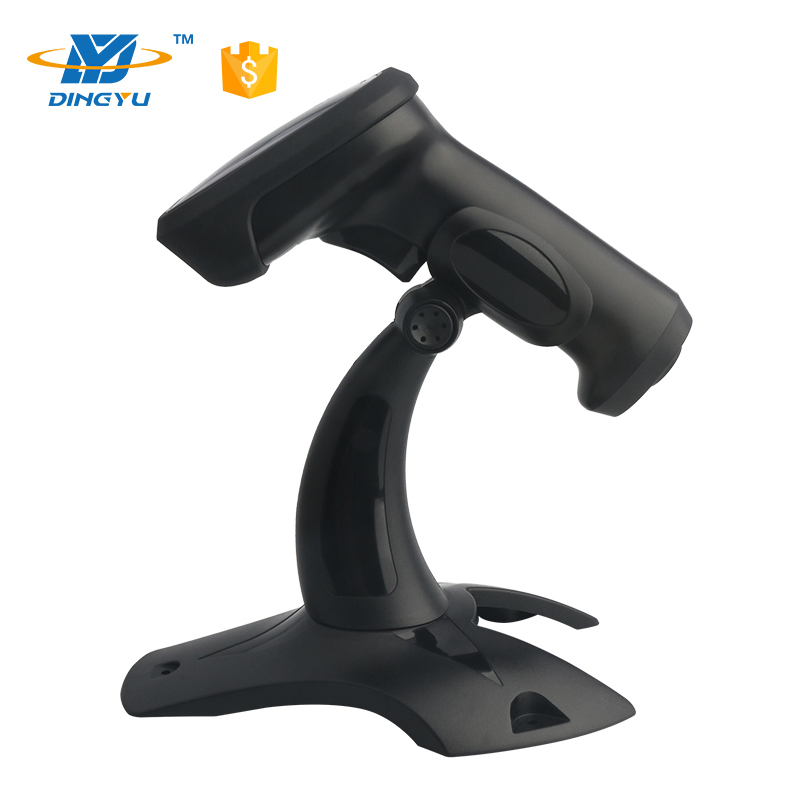

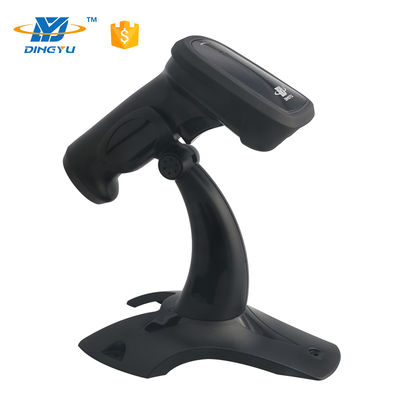

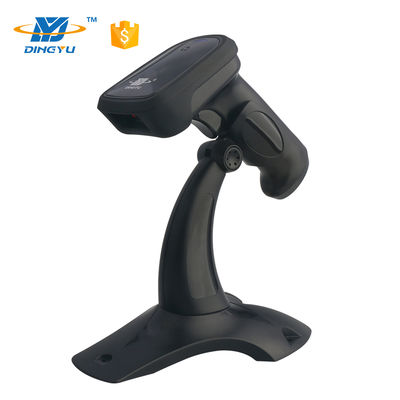

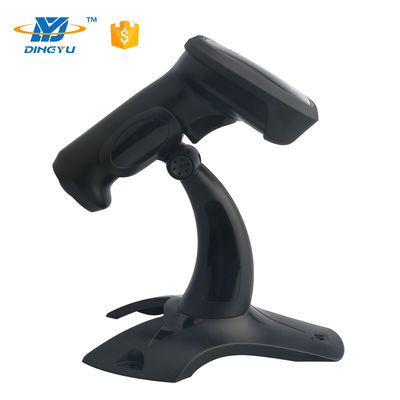

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan: We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROSH certifications.

Q2: How do you perform quality control?

DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipment.

Q3: What is the warranty period?

DYscan: 12 months warranty.

Q4: How do you ensure stable performance?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM/ODM services?

DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company strengths?

DYscan: As professional scanner manufacturers, we have specialized departments including R&D for new products, production for manufacturing and testing, and dedicated marketing and sales teams.

Q7: Do I need to install drivers?

DYscan: No drivers required. Our scanners support plug-and-play functionality with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
