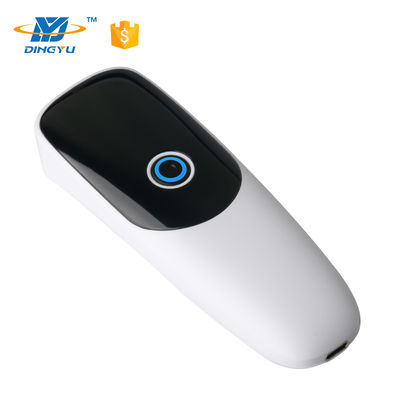

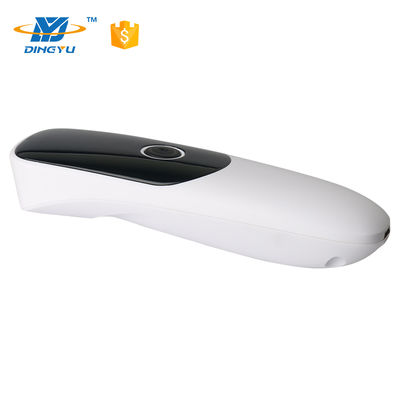

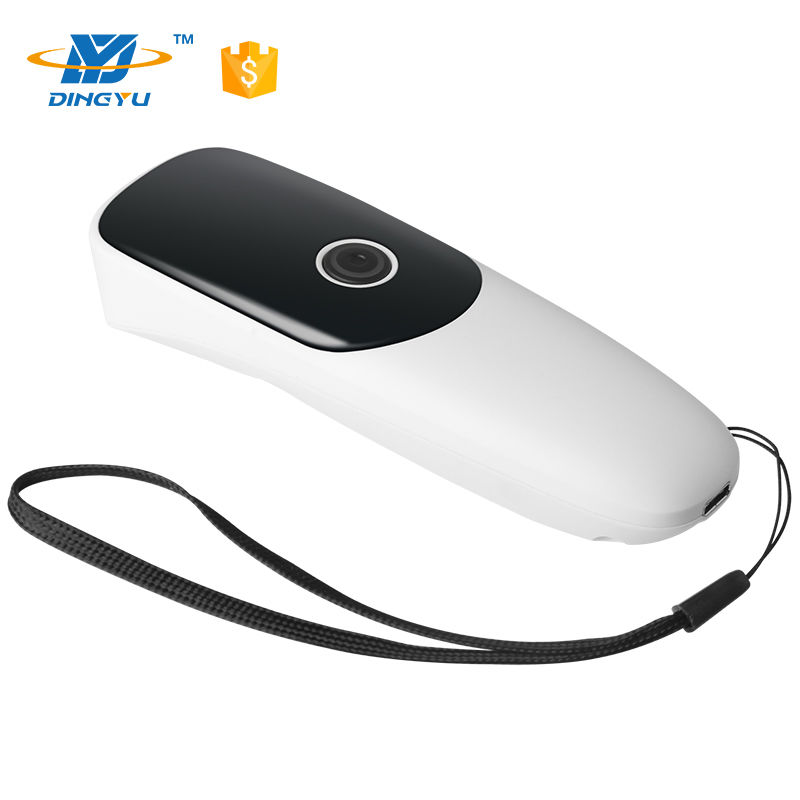

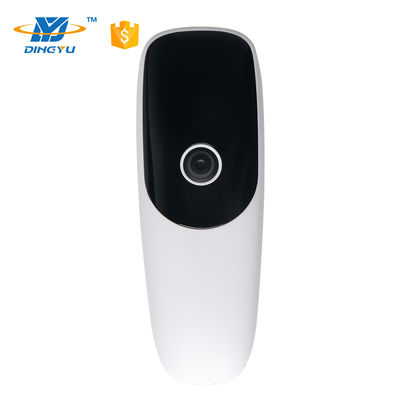

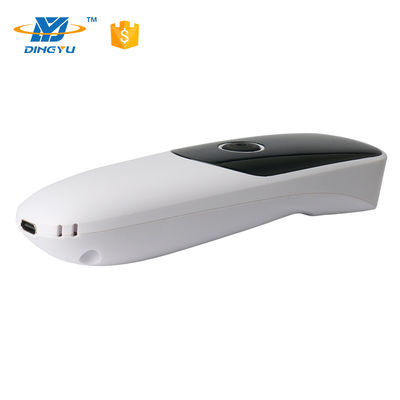

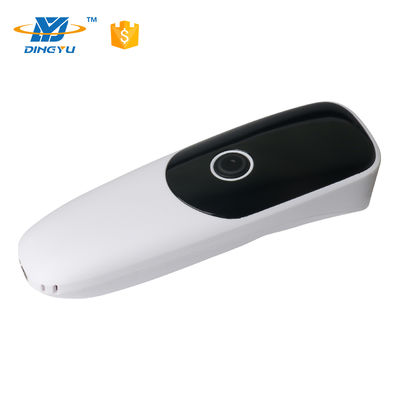

Name: Bluetooth 2D Barcode Scanner DI9130-2D with CMOS Technology
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

منزل المنتجات اللاسلكية الباركود ماسحة

Bluetooth 2D Barcode Scanner DI9130-2D with CMOS Technology

تفاصيل المنتج:

شروط الدفع والشحن:

الحد الأدنى لكمية:	1

اتصل

مفصلة وصف المنتج

رقم النموذج:	دي اي 9130-2د	نوع الواجهة:	بلوتوث دونجل
سرعة المسح:	35 سم / ثانية	عنصر المسح:	CMOS
عمق المجال:	20-500 ملم	وضع المسح:	يدوي ، الشعور التلقائي
طباعة التباين:	20 ٪	الإضاءة المحيطة:	بيئة مظلمة ، ضوء طبيعي داخلي
الرموز:	1D و 2D	وزن:	70G بدون كابل
البعد:	الطول 130 ملم * العرض 47.5 ملم * الارتفاع 24 ملم	واجهة:	النوع ج
ارتفاع ارتفاع:	1.5m	ينقل:	10H@125RPM
وحدة المعالجة المركزية:	32 بت
إبراز:	Bluetooth barcode scanner with CMOS,2D barcode scanner wireless,DI9130-2D Bluetooth scanner , 2D barcode scanner wireless , DI9130-2D Bluetooth scanner

Bluetooth Portable 1D 2D Laser CMOS QR Barcode Scanner Reader

Product Attributes

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Dongle Bluetooth
Scan Speed	35cm/S
Scan Element Type	CMOS
Depth of Field	20-500mm
Scan Mode	Manual, Auto Sense
Print Contrast Signal	20%
Ambient Light	Dark Environment, Indoor Natural Light
Symbologies	1D and 2D
Weight	70g Without Cable
Dimension	L130mm * W47.5mm * H24mm
Interface	Type C
Drop Height	1.5m
Transport	10h@125rpm
Transport Package	17011040mm
Trademark	DYscan
Origin	China
HS Code	8471900090
Production Capacity	50000

Product Description

The DI9130-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	35CM/S
Depth of field	20-500mm
Scan Mode	Manual, Auto sense
Scan angle	Pitch:±60°, Roll: ±360°, Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: We are a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: 12 months warranty.

Q4: How do you ensure stable performance?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you offer OEM or ODM services?

DYscan: We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

DYscan: As a professional scanner manufacturer, we have specialized departments including R&D (new product development), production (manufacturing and testing), and marketing/sales (customer service and support).

Q7: Do I need to install drivers?

DYscan: No drivers required. Our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
