Name: Ergonomic Wired USB 2D Barcode Scanner with High-Speed CMOS QR Code Reader for Supermarket and Warehouse Use
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

منزل المنتجات 2D الباركود ماسحة

Ergonomic Wired USB 2D Barcode Scanner with High-Speed CMOS QR Code Reader for Supermarket and Warehouse Use

تفاصيل المنتج:

شروط الدفع والشحن:

الحد الأدنى لكمية:	1

اتصل

مفصلة وصف المنتج

نموذج لا.:	DS5220-2D	نوع الواجهة:	USB
سرعة المسح:	300 عملية مسح / ثانية	عنصر المسح:	CMOS
دقة:	640*480	القدرة على القراءة:	3mil
سرعة فك التشفير:	65 سم / ثانية	عمق المجال:	30-600mm
وضع المسح:	يدوي، استشعار تلقائي، مستمر	مصدر الضوء:	الضوء الأحمر LED 525±10nm (الهدف)، 5600K LED (الإضاءة)
مجال الرؤية:	أفقي 40°× عمودي 30°	وزن:	160 جم
طول الكابل:	1.8 م	درجة حرارة التشغيل:	-20 درجة مئوية إلى 55 درجة مئوية
مزود الطاقة:	مدخل DC5V، تيار الاستعداد: 50 مللي أمبير، تيار فك التشفير: 180 مللي أمبير
إبراز:	USB 2D Barcode Scanner,Ergonomic QR Code Reader,Wired Handheld Barcode Scanner , Ergonomic QR Code Reader , Wired Handheld Barcode Scanner

DS5220-2D Wired 2D Handheld Barcode Scanner

The DS5220-2D is a professional-grade wired 2D handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for high-performance scanning across various media including paper, goods, and digital screens, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payment, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D & 2D barcodes with ease
High-performance 32-bit processor for fast decoding (3mil resolution)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480 (global exposure)
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	20mm~530mm
Scan Modes	Manual, Auto Sense, Continuous
Prompt Method	LED indicator, buzzer
Field of View	Horizontal 40°× Vertical 30°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Print Contrast Signal	≥20%
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈159.6g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB
Power Supply	DC5V input, Standby current:50mA, Decoding current:180mA

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes at 60ºC high temp, 30 minutes at -20ºC low temp
Transport Vibration Test	10H@125RPM

Depth of Field Specifications

Barcode Type	Barcode Density	Nearest	Furthest
Code 39	0.1mm (4mil)	50mm	75mm
Code 39	0.25mm (10mil)	30mm	200mm
Code 39	1mm (40mil)	115mm	530mm
UPC/EAN	0.33mm (13mil)	40mm	260mm
QR Code	20.0mil	20mm	165mm
Data Matrix	10mil	40mm	100mm
PDF 417	6.8mil	30mm	140mm

Supported Symbologies

1D Barcodes: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT

2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Standard Accessories

Cable	USB, connects the scanner to a host device and provides power
Receiver	Used to receive and transmit scanner data

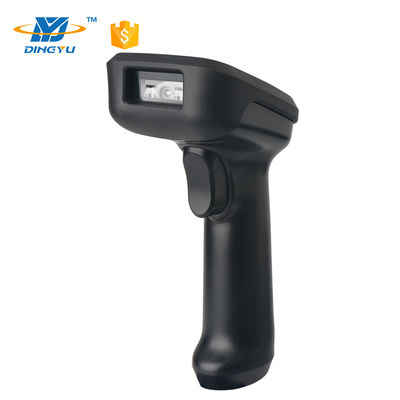

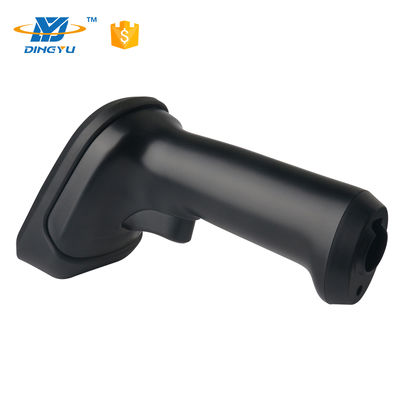

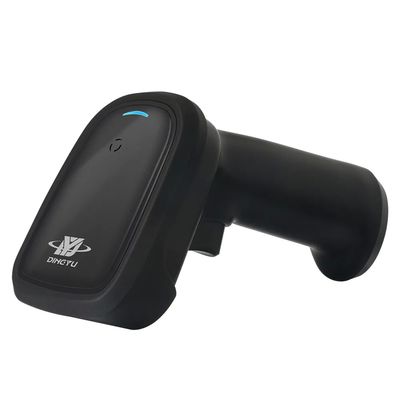

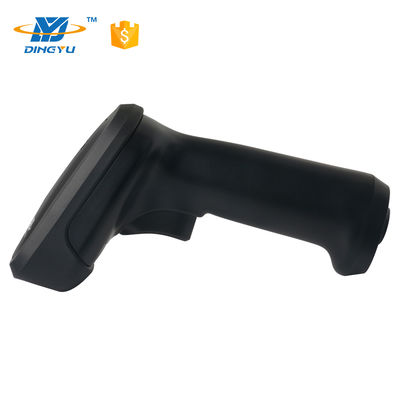

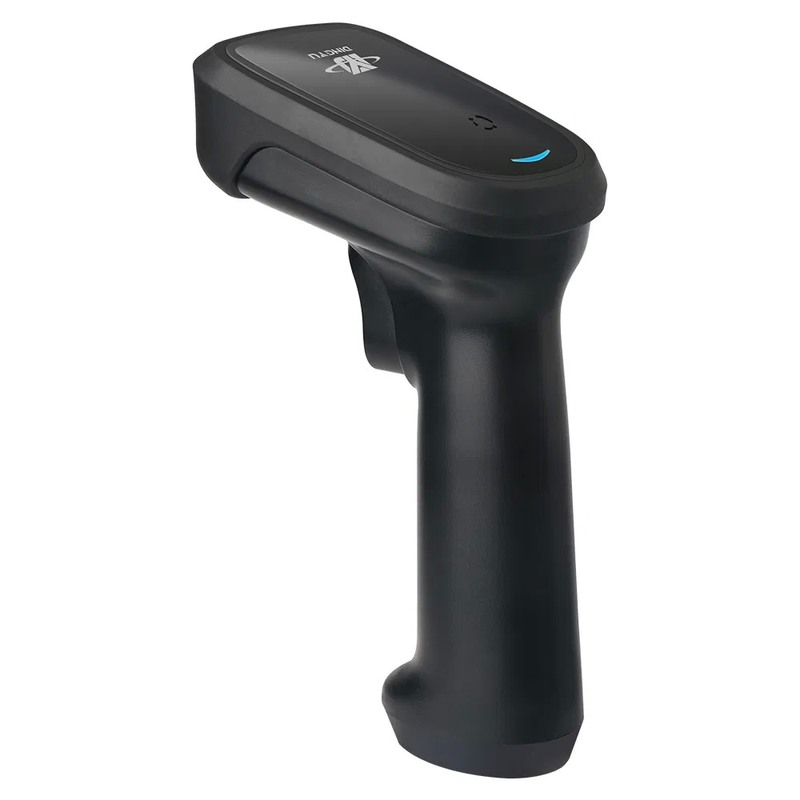

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. We maintain strict quality control with professional QC teams and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our barcode scanners are CE, FCC, and ROHS certified.

Q2: What quality control measures do you implement?

We conduct rigorous testing including wire bend tests (1 million cycles), button durability tests (1 million presses), and comprehensive device testing before shipment.

Q3: What is the warranty period for your barcode scanners?

We provide a 12-month warranty for all our barcode scanners.

Q4: How do you maintain stable performance across your products?

We implement flow line production throughout our manufacturing process. Each product undergoes at least 4 quality tests before delivery to ensure consistent performance.

Q5: Do you offer OEM or ODM services for barcode scanners?

Yes, we provide OEM services including custom branding (logos, packaging, manuals) and have a dedicated technical team to support ODM projects.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have specialized departments for R&D, production, testing, marketing, and customer service, each led by experienced directors to ensure product excellence and customer satisfaction.

Q7: Do I need to install drivers for the scanner?

No, our scanners support plug-and-play functionality without requiring driver installation. They are compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
