Name: High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 5 USD
Availability: InStock

منزل المنتجات الباركود المسح الضوئي المحرك

High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension

تفاصيل المنتج:

شروط الدفع والشحن:

الحد الأدنى لكمية:	1
الأسعار:	5

اتصل

مفصلة وصف المنتج

رقم الموديل:	DE2106	نوع الواجهة:	USB
سرعة المسح:	25 سم / ثانية	عنصر المسح:	CMOS
دقة:	4mil	مستشعر الصور:	640*480
وضع المسح:	المسح التلقائي، مستمر	طباعة التباين:	25 ٪
تواصل:	USB (USB-Kbw، USB-COM)، TTL	وزن:	3.5 جم
البعد:	22 ملم طول * 14.6 ملم عرض * 11.3 ملم ارتفاع	وحدة المعالجة المركزية:	32 بت
مزود الطاقة:	تيار مستمر 3.3 فولت، 150 مللي أمبير (العمل)	درجة حرارة التشغيل:	-20 درجة مئوية إلى 50 درجة مئوية
ارتفاع ارتفاع:	1.2m
إبراز:	1D 2D Barcode Scan Engine,3.5g Weight Barcode Scanner Module,22mm L * 14.6mm W * 11.3mm H Embedded Barcode Scanner , 3.5g Weight Barcode Scanner Module , 22mm L * 14.6mm W * 11.3mm H Embedded Barcode Scanner

High-Performance 1D/2D Barcode Scanner Embedded CMOS Barcode Scanning Engine Module

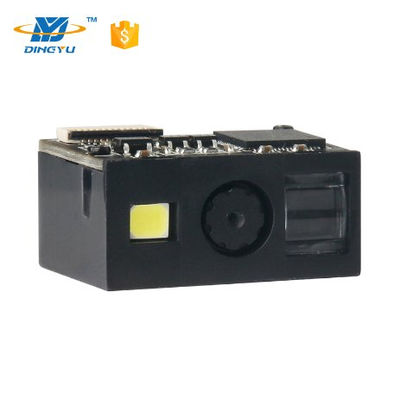

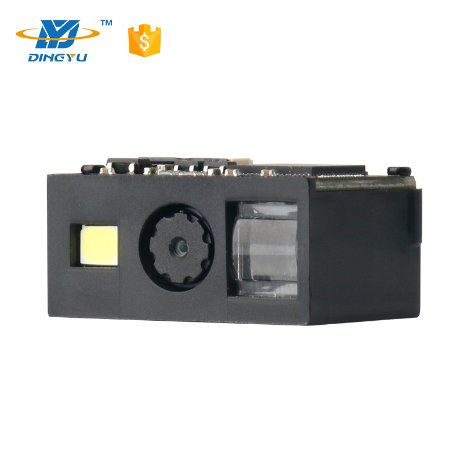

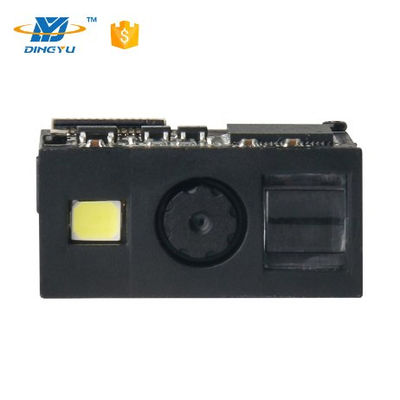

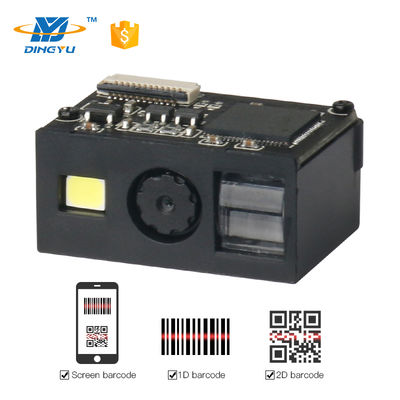

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile module supports both 1D and 2D barcode scanning across various media including paper, products, and digital screens.

With multiple interface options (USB, TTL), this module is designed for easy integration into OEM products such as handheld devices, portable equipment, fixed terminals, and barcode collection systems.

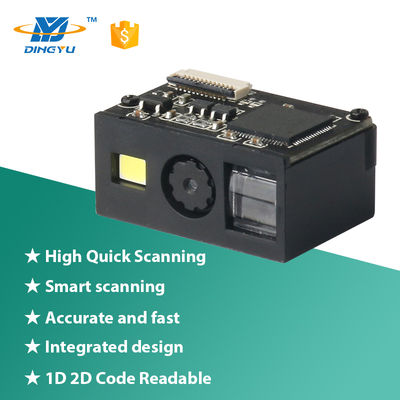

Key Features

Compact size ideal for wireless machines and self-service terminals
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
High-brightness scanning capability for low-light environments
Low power consumption design
Multiple interface options: USB and TTL
Supports multiple operating systems and languages for secondary development

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Reading Precision	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Scan View	36°×28°
Scan Modes	Manual, Auto sense, Continuous
Scan Angles	Pitch: ±50°, Roll: ±360°, Skew: ±50°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7) 2D: QR Code, Micro QR Code, Data Matrix, PDF417

Weight	<3.5 g

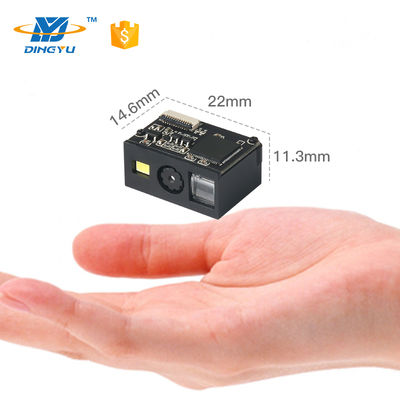

Dimensions	22mm (L) × 14.6mm (W) × 11.3mm (H)
Communication	USB (USB-KBW, USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V, 150mA (Work)

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes at 60ºC high temp, 30 minutes at -40ºC low temp
Transport Test	10H@125RPM
