High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
تفاصيل المنتج:
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: 10
اتصل
مفصلة وصف المنتج
رقم الموديل: دي2290 نوع الواجهة: USB
سرعة المسح: 35 سم / ثانية عنصر المسح: CMOS
دقة: 3mil/0.076mm مستشعر الصور: 640*480
طباعة التباين: 20% مزود الطاقة: تيار مستمر 3.3 فولت، 200 مللي أمبير
كابل ffc: 5 سم ارتفاع ارتفاع: 1.2m
وزن: 3.5 جم عمق المجال: 40-530 ملم
أبعاد: 21.40×15.40×10.70 ملم مصدر الضوء: الصمام الأبيض، الصمام الأحمر
درجة حرارة التشغيل: -20 درجة مئوية إلى 55 درجة مئوية
إبراز:

1 Mega Pixel Barcode Scanner Module,640*480 Image Sensor 2D Barcode Scan Engine,32-bit CPU Embedded Barcode Scanner

,

640*480 Image Sensor 2D Barcode Scan Engine

,

32-bit CPU Embedded Barcode Scanner

High Quality USB Fixed Kiosk 2D Good Payment Barcode Scanner Module
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 0

DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

  • Excellent reading performance for barcodes on paper, merchandise, and digital screens
  • Compact integrated design for easy installation in various equipment
  • Ideal for self-service machines, price checking systems, and smart lockers
Product Specifications
Weight: 3.4g (without cable)
Dimensions: 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface: USB, USB-com (requires driver), TTL (USB 2.0 Full Speed protocol)
Light Source: White LED (auto-adjusting brightness) with red aiming LED (525nm wavelength)
CMOS: 1280×800 resolution
CPU: ARM 32-bit processor
Performance Parameter Specification
Startup Time 750ms
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 30-500mm
Scan Modes Trigger mode, Auto sense mode, Command control
Reading Angles Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Motion Tolerance 65cm/s
Power Input 3.3V~5V (DC5V recommended), Standby: 47mA, Decoding: 180mA average
Supported Symbologies
1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A/E, EAN/JAN, ISBN, ISSN, GS1 Databar variants, MSI, Febraban
2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Environmental Specifications
Parameter Specification
Operating Temperature -20ºC to 55ºC
Storage Temperature -20ºC to 60ºC
Humidity 5% to 95% (non-condensing)
Vibration Test 10H@125RPM
Product Images

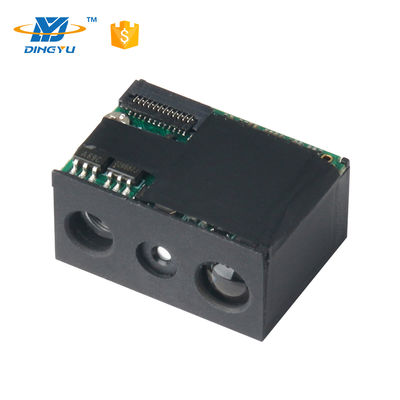

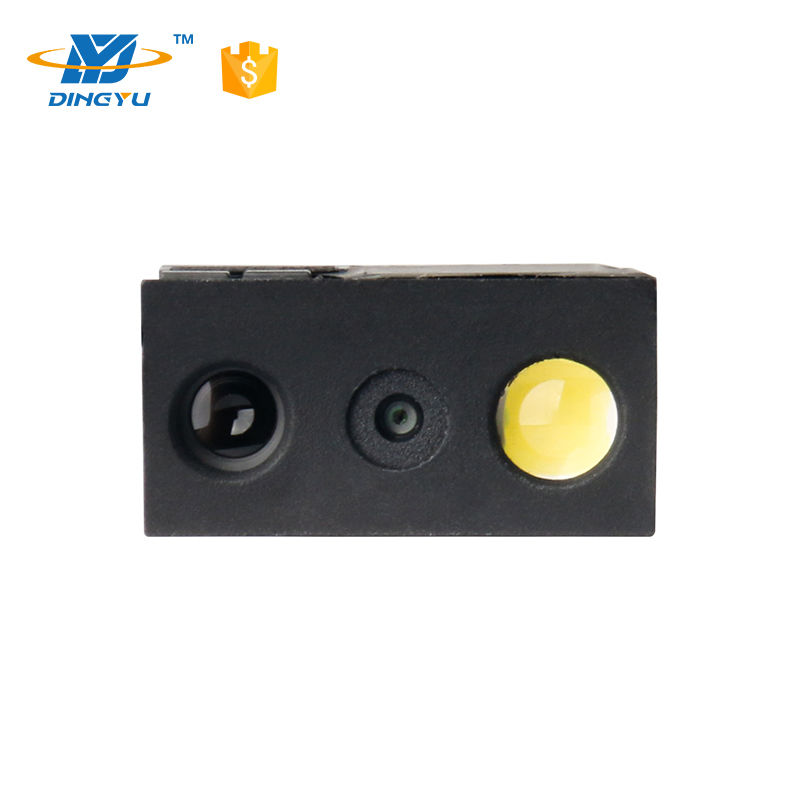

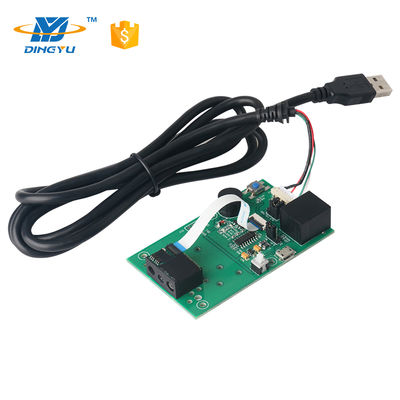

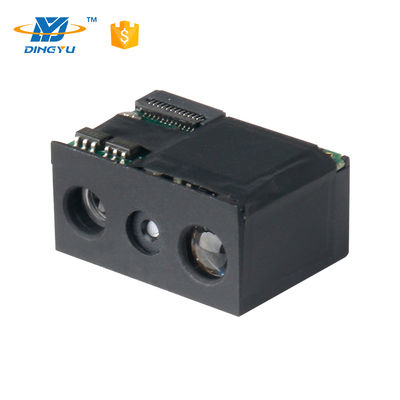

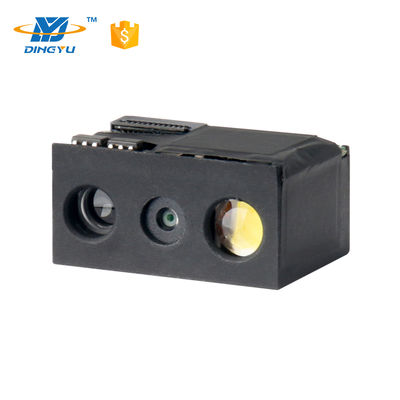

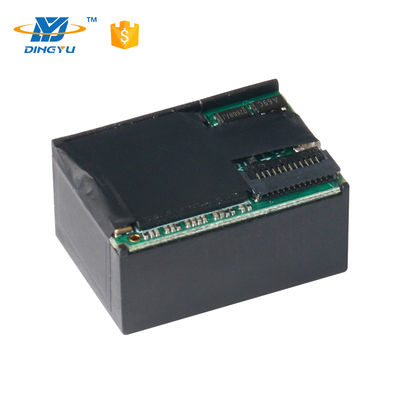

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 1 High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 2 High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 3
Packaging & Shipping
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 4
Company Profile
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 5
Certifications
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 6
Exhibition
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 7
